MFD100S Horizontal Version Intelligent Digital Ultrasonic Flaw Detector NDT Detector with Data Storage and Video Function

Flaw Detecting Function*Flaw detection standard: Built-in commonly used flaw detection standards in various industries, directly call, convenient and fast.*Weld seam graphic: weld seam parameters can be set, and weld seam graph, defect location and echo path can be visualized during flaw detection.*Automatic calibration: probe zero bias and probe refraction angle (K value) automatic calibration function; sound speed automatic measurement function.*Wave peak memory: real-time retrieval of the highest wave of the defect and recording of the peak echo of the defect.*Calculation of Φ-value: automatically calculate and display the equivalent size of defects after finding the peak echo of defects when probing forging parts with straight probe.*Defect localization: real-time display of defect level, depth (vertical) and sound range position.*Defect quantification: real-time display of defect equivalent dB value (or equivalent size).*Defect characterization: facilitate manual empirical judgment by echo envelope waveform.*CSC Surface Correction: Used for curved surface workpiece flaw detection, it can display the circumferential position and depth of defects in real time.*DAC curve: the curve is automatically generated with unlimited sampling points and can be compensated and corrected.*The curve floats automatically with gain, expands automatically with acoustic range, and moves automatically with delay.*DGS curves: Evaluation of echo signals by using DGS/AVG curves associated with specific types of probes and materials. Can display DGS curves for any aperture.*AWS D1.1/D1.5: Supports the American Welding Society (AWS) standard, providing "defect grading" for all types of AWS weld inspection applications. Eliminates manual calculations and improves inspection efficiency.*API 5UE: Quantifies the size of defects in accordance with the American Petroleum Institute (API) recommended guideline 5UE, and uses Amplitude Distance Difference Technique (ADDT) to measure the size of potential defects in the OCTG pipeline validation process.*Crack Height Measurement: Automatically measures and calculates crack height using endpoint diffraction waves.* In-gate Spreading: Zoom in on echo details for easy analysis of echoes.*Video: real-time recording of echoes and parameters, and can be played back.*Waveform Freezing: Freeze the echo displayed on the screen, which is convenient for defect characterization.*Echo Coding: Display 1~8 echoes in different colors, easy to judge the location of defects.*B-scan: real-time scanning, display cross-section, can display the shape of the workpiece defects, so that the detection results are more intuitive.* Adjustable square wave pulse, emission voltage, filtering band and probe damping, applicable to the flaw detection of various workpieces.

• Gate alarm:Gate start, gate width, gate height arbitrarily adjustable; A gate fixed position into the wave alarm; B gate can be selected to set up for the wave alarm or loss of wave alarm; gate beeps and LED lights suitable for noisy environment alarm and shutdown; capture marking function can be intuitively displayed in the gate to capture the characteristics of the echo.
• Data Storage:*1000 channels , can be pre-calibrated with various types of probes and instrument combination parameters and stored in the channels that is convenient to retrieve at any time;It can lock, unlock and change the channel name of each channel;It can freely set the standards of various industries for flaw detection;Built-in 16G memory card (microSD), can store massive flaw detection information (waveform,parameters, video, etc.), can store 20,000 waveform files, or store at least 200 hours of video files.
• Video Function:The instrument supports for saving the inspection process as video file and save it to the internal storage card. Video file can be replayed through the instrument. It can also be uploaded to a computer for playback through specialized software. Maximum support for 150 video files, the total length of the video about 200 hours. Playback the inspection process video makes great convenience for learning detecting but also saved for the future analysis to the inspecting process.
• Battery module:Capacity dedicated lithium battery module, online charging, convenient for probing personnel to use. Continuous working time reaches more than 8.5 hours.

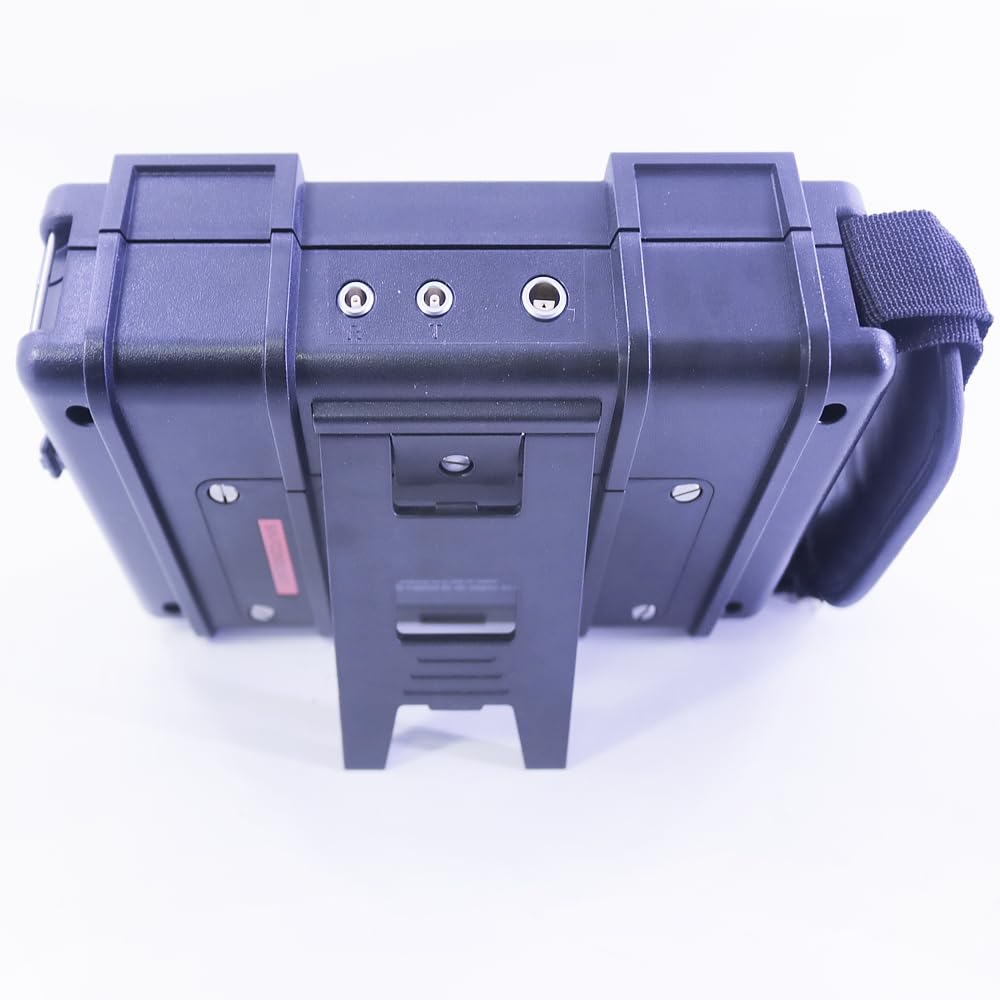

• Hand replacement operation:The hand strap can be installed on the right or left side of the instrument, and it is easy to change to adapt to right-handed or left-handed operation.
• Display:Unique splash-proof sealing design, waterproof, oil-proof, can withstand rain, humidity, wind and sand, dust, oil and other pollution in various harsh environments.Adopting TFT full digital true color LCD display, the screen brightness is clear, the background color can be selected according to the environment and the LCD brightness is adjustable, which is suitable for a variety of operating environments.
