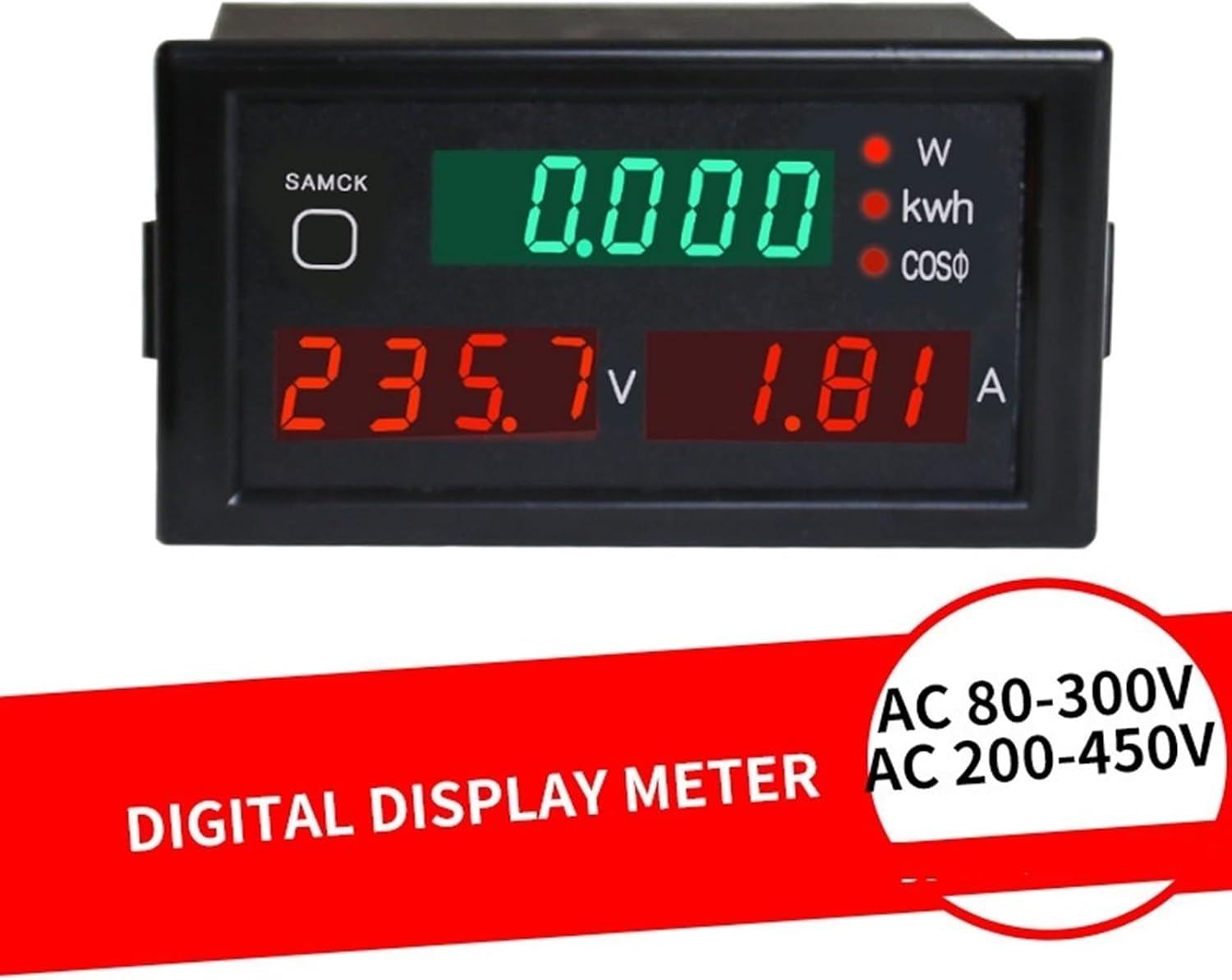

YANHAO DL69-2047 Multi-Function Power Meter Voltage Tester Voltmeter Ammeter Current Factor AC80-300V with Mutual Inductor 1Pcs (Size : AC80-300V)

Instrumentation>>DescriptionThe DL69-2047 digital display multifunction meter simultaneously displays the measured AC voltage, AC current, active power, electric energy (electricity/electricity), power factor and electric parameters at the same time on the instrument.>>SpecificationAccuracy: 1%±2 wordsDisplay Mode: AC voltage and power factor use four red led of 0.32-inchAC current use four red led of 0.32-inchActive power, electric energy use five green led of 0.32-inchRange:AC Voltage: AC 80.0-300.0V/ AC 200.0-450.0V/ AC 0.0-100.0A (when measyre signal lower than 100A, the accuracy is 0.01A, when measure signal hifher than 100A, the accuracy is 0.1A , the accuracy auto-change)Active Power: 0.0-30000W ( measure voltage AC 80.0 - 300.0V )0.0-45000W ( measure voltage AC 200.0 - 450.0V )Electric Energy: 0.000-99999kwhPower Factor: 1.000-0.000Speed: 2 times per secondSize: 79×43×48mmInstallation Size: 76×39mm>>Package Included1 × Multifunction Meter>>NotesThis meter is only suitable for pure AC 45-65Hz mains power supply, can not be used for inverter, SCR circuit, square wave inverter output and repair sine wave sine wave circuit measurement, otherwise the meter will be permanently damaged!<;Application Method1. Connect the secondary transformer ( green wire ) to the blue terminal, and make the wire through the hole in the current transformer as graph.2. Connect the measuring voltage to the green terminal.
